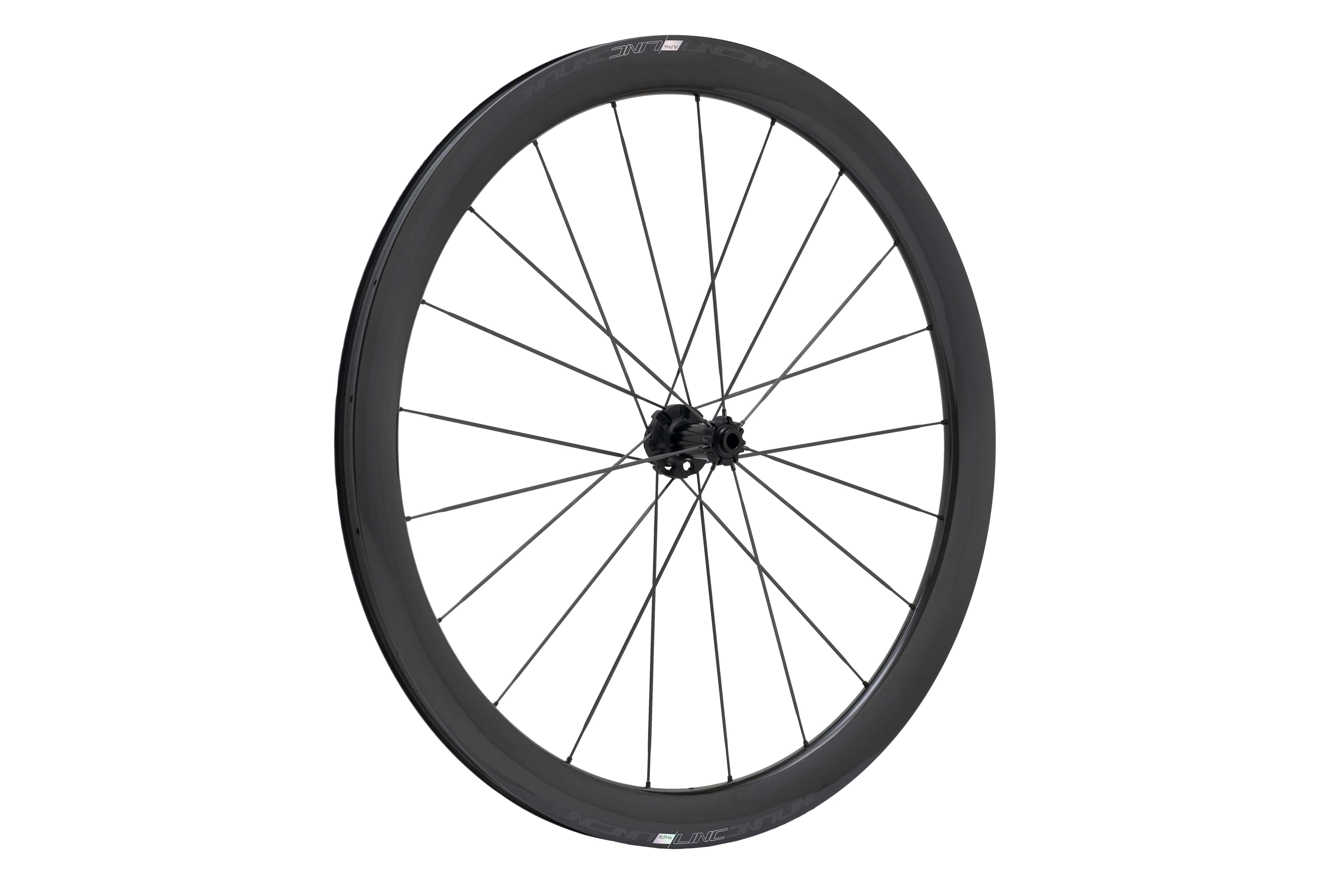

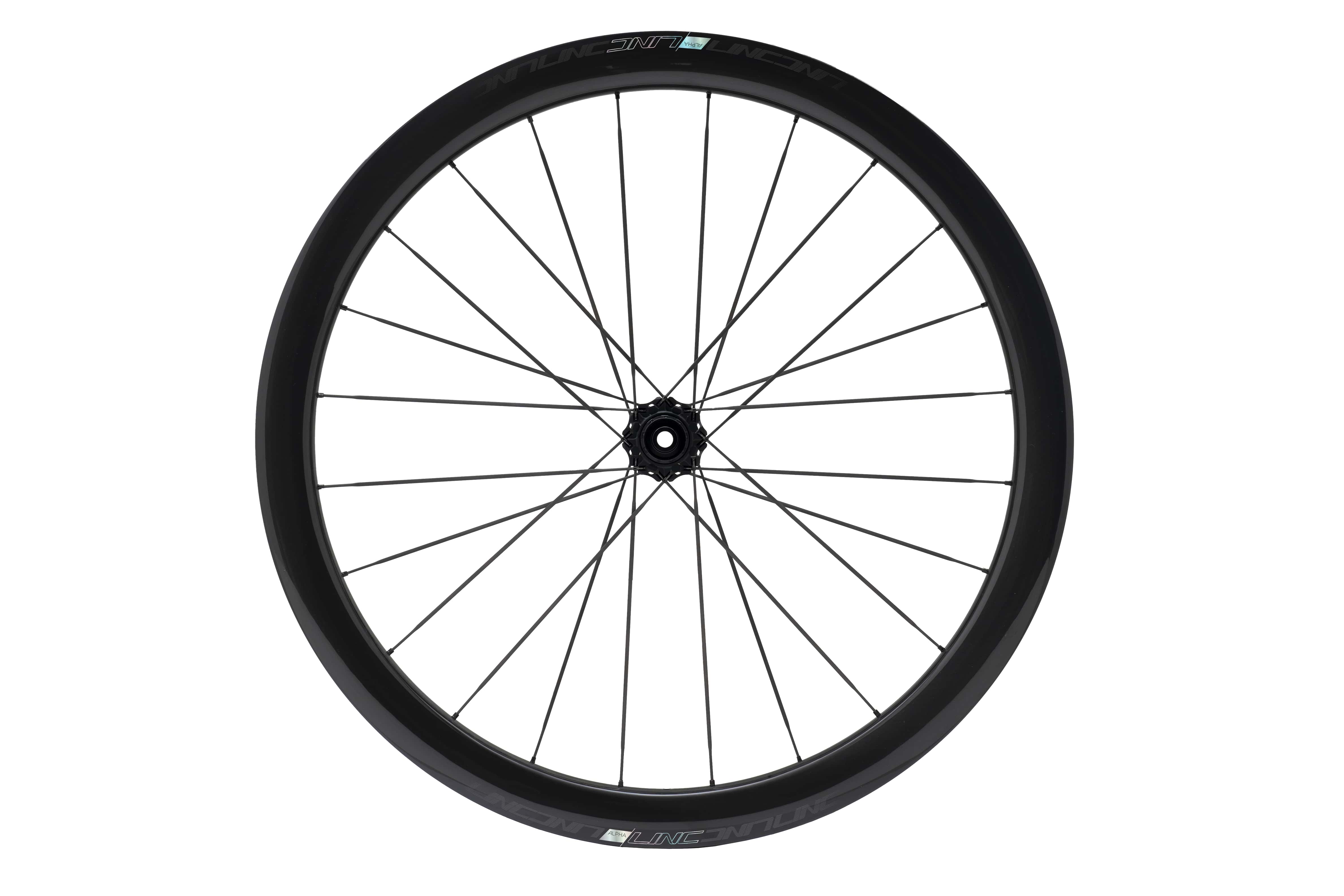

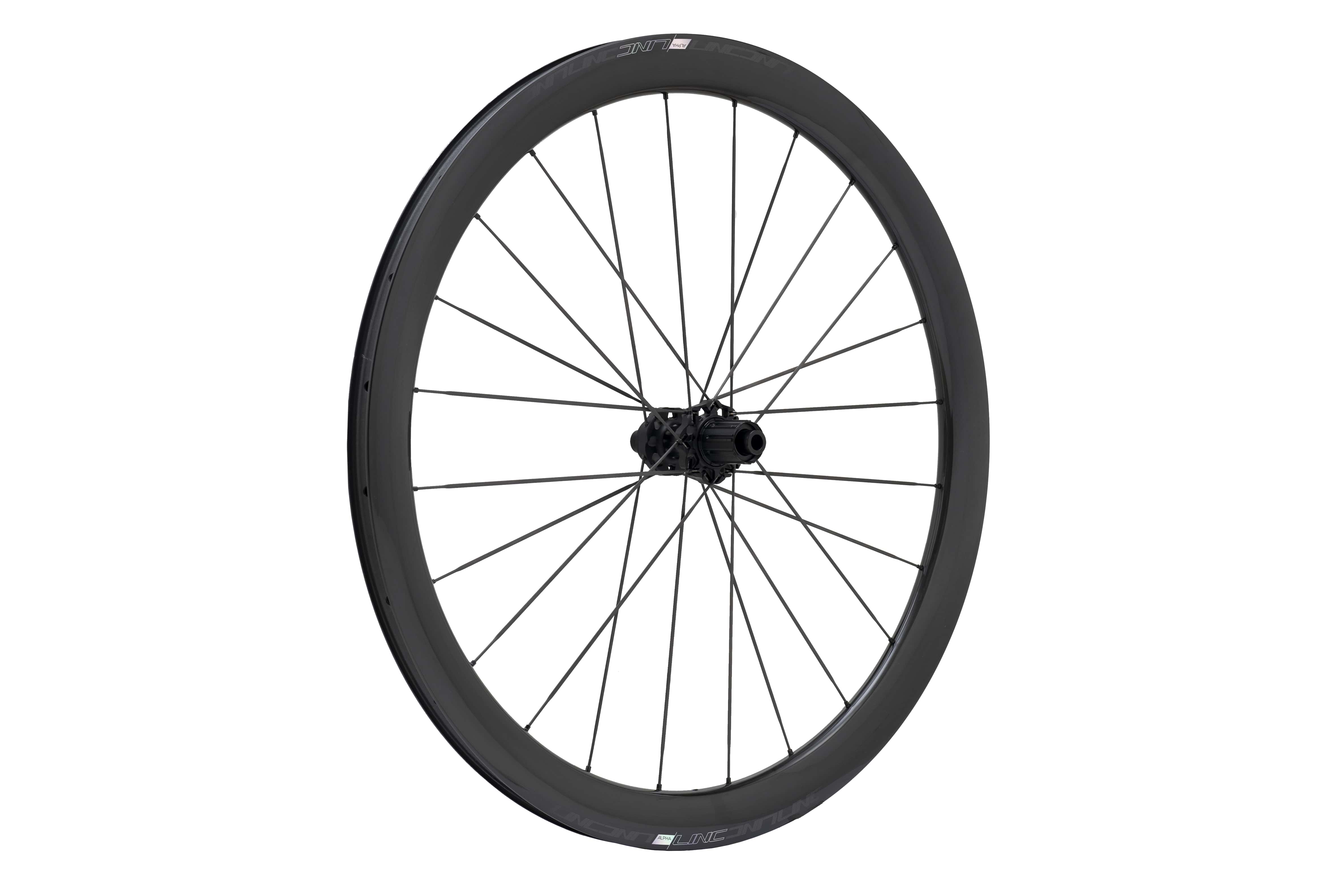

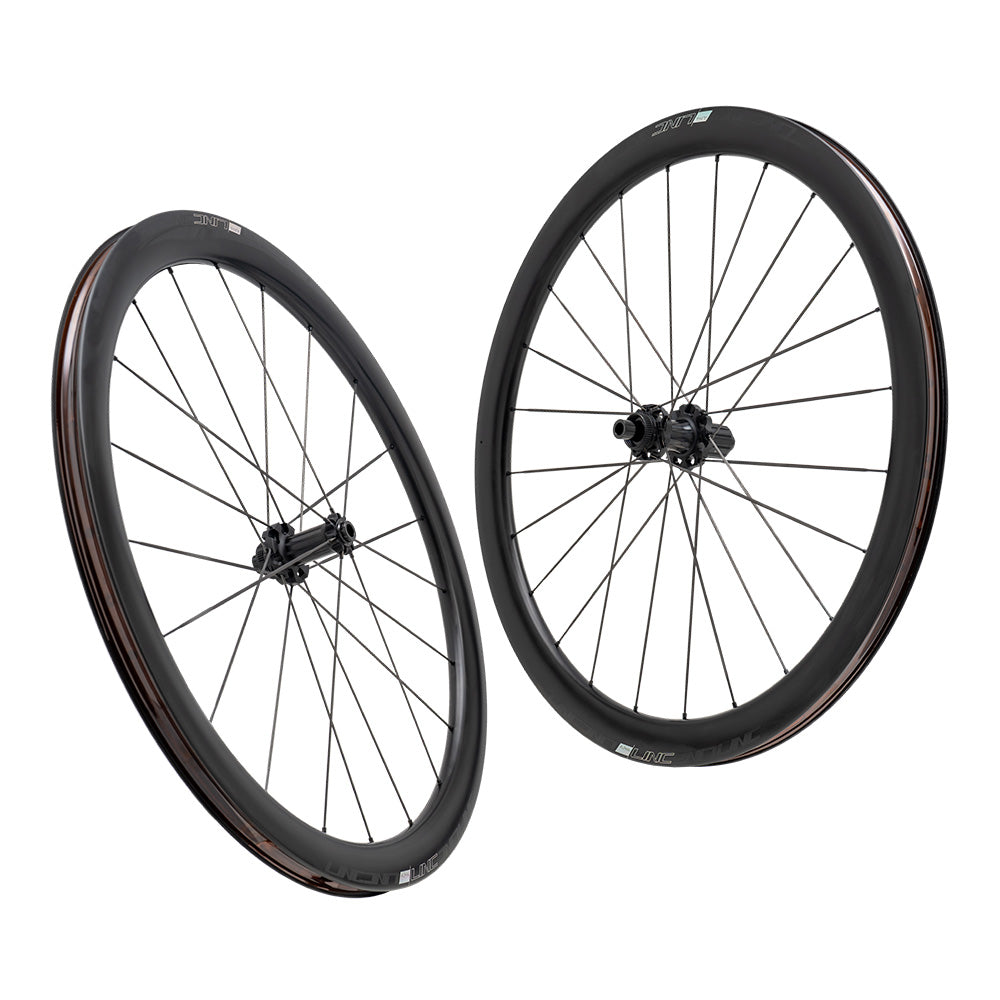

LINC Alpha 45

Control and Speed in Every Turn.

The LINC Alpha 45 delivers sharp handling on climbs and flats, while maintaining smooth, confident control in crosswinds. Designed for riders who want all-round performance without compromising on elegance.

Weight
600g (front) / 745g (rear)

You may also like

Features

High-Quality Carbon Fiber Material

Delivers exceptional strength with ultra-lightweight construction, enhancing the efficiency and responsiveness of your bike.

Superior Aerodynamic Carbon Spoke Design

The oval-shaped middle section with a thickness of 1.4mm reduces wind resistance, ensuring maximum speed on every ride.

Optimal Stiffness & Power Transmission

Unique carbon spoke structure provides ideal stiffness for efficient power transfer, making every pedal stroke feel more powerful.

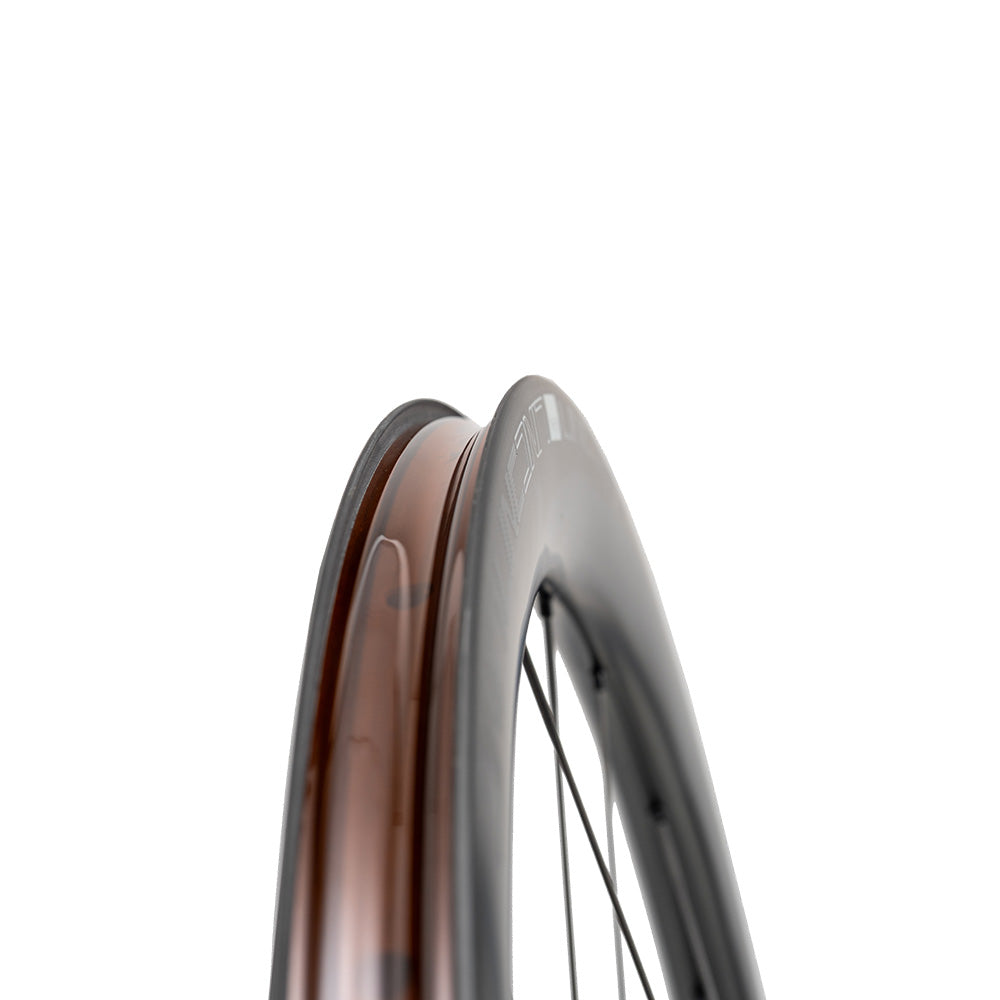

Tubeless-Ready

Compatible with both tubeless setups and traditional inner tubes for versatile performance.

Spec Image

Tyre Type:

2-Way Fit (Clincher and Tubeless)

Tyre Size:

700c

Rim Weight:

600g (f) / 745g (r)

Rim Material:

Carbon

Rim Depth:

Front and Rear 45 mm

Rim Width:

22 MM

Braking System:

Disc Brake

Front Hub:

Alumunium, Oversize Flange

Rear Hub:

Alumunium, Oversize Flange

O.L.D:

110 mm / 142 mm

Front Wheel Spoke:

21 H Straight Pull

Rear Wheel Spoke:

24 H Straight Pull

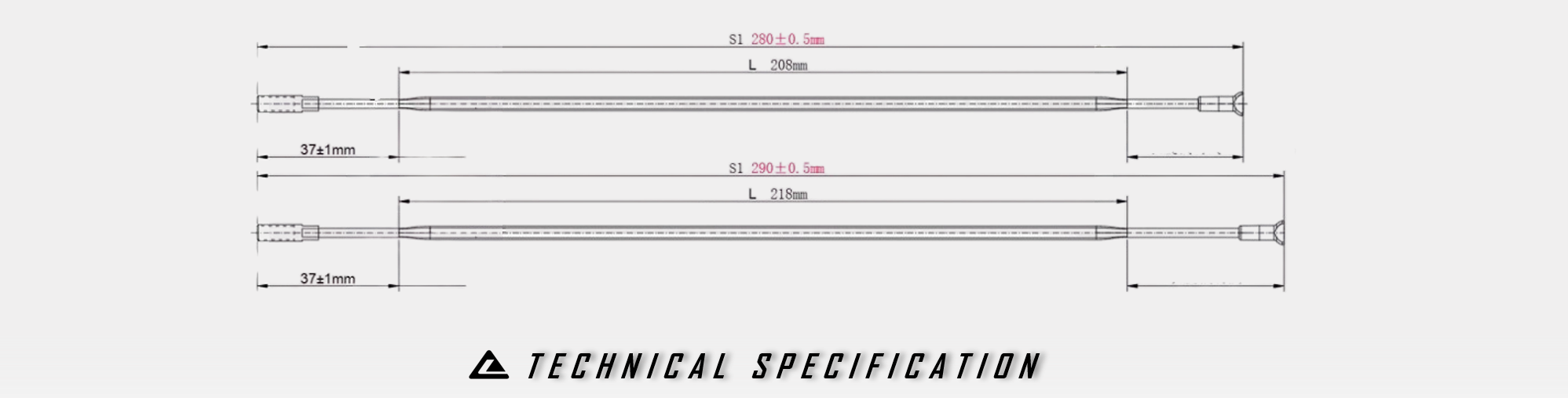

Spec Image

Wheelsize:

700C

LINC Hub:

12 x 110mm / 12 x 142mm

Weight:

2.8g

Spoke Length:

F.DS : 270mm / R.DS : 266.5mm
F.NDS : 271.5mm / R.NDS : 272mm

Spoke Material:

Carbon

Spoke Type:

Aero Spokes

Spoke Count:

F: 21H / R: 24H

Nipple:

8.7mm

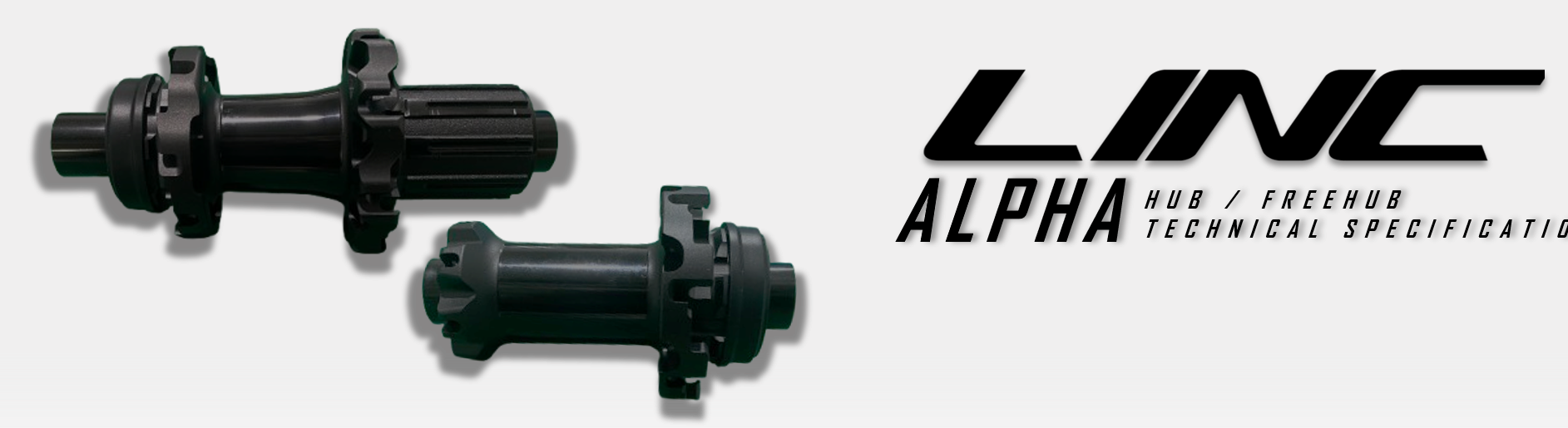

Spec Image

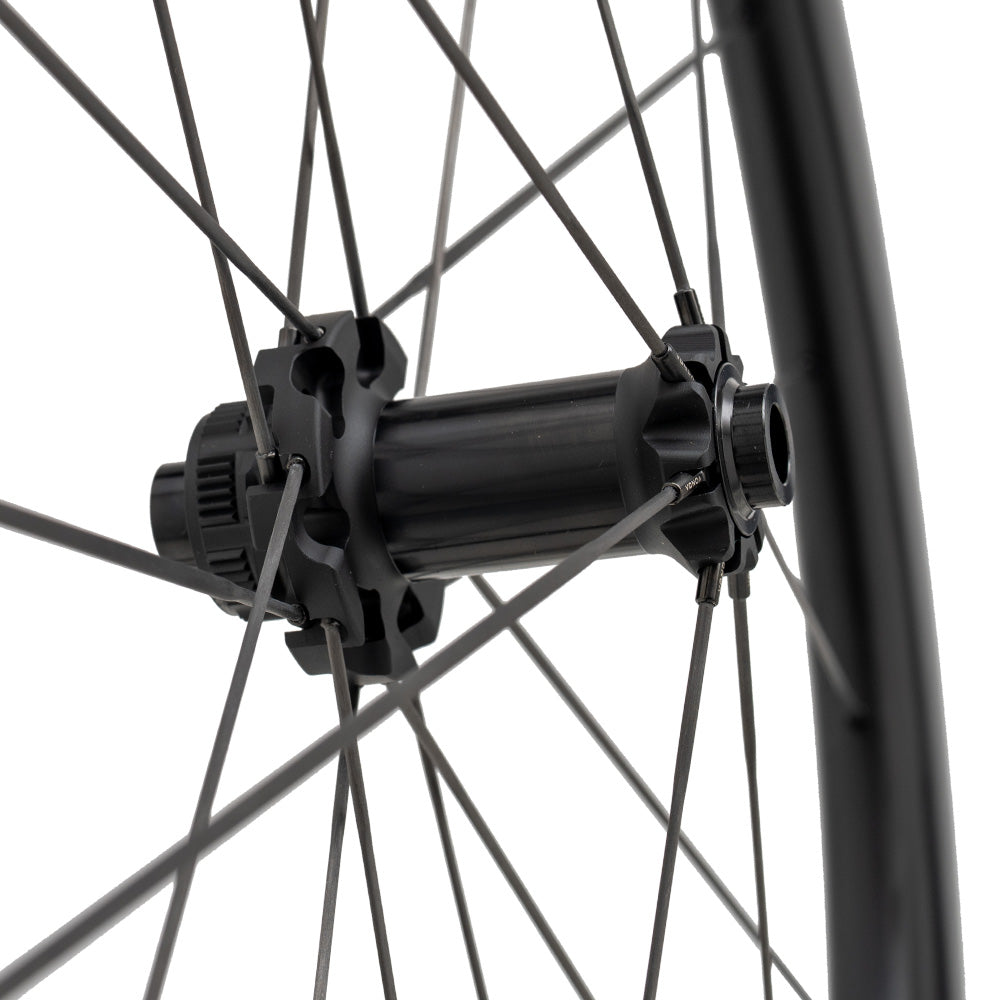

Front

Sealed Bearing:

2PCS (6802*1 + 6902*1)

Hub Shell Bearings:

2PCS (6802*1 + 6902*1)

Freehub Shell Bearings:

-

Disc Mount:

Centre Lock

Ratchet:

-

Freehub Body:

-

Hub Spoke Holes:

21H

Axle Size x Hub O.L.D:

TA12 x 100

Hub P.C.D:

Left 48 / Right 30

Hub F.T.F:

59

Hub Offset:

10

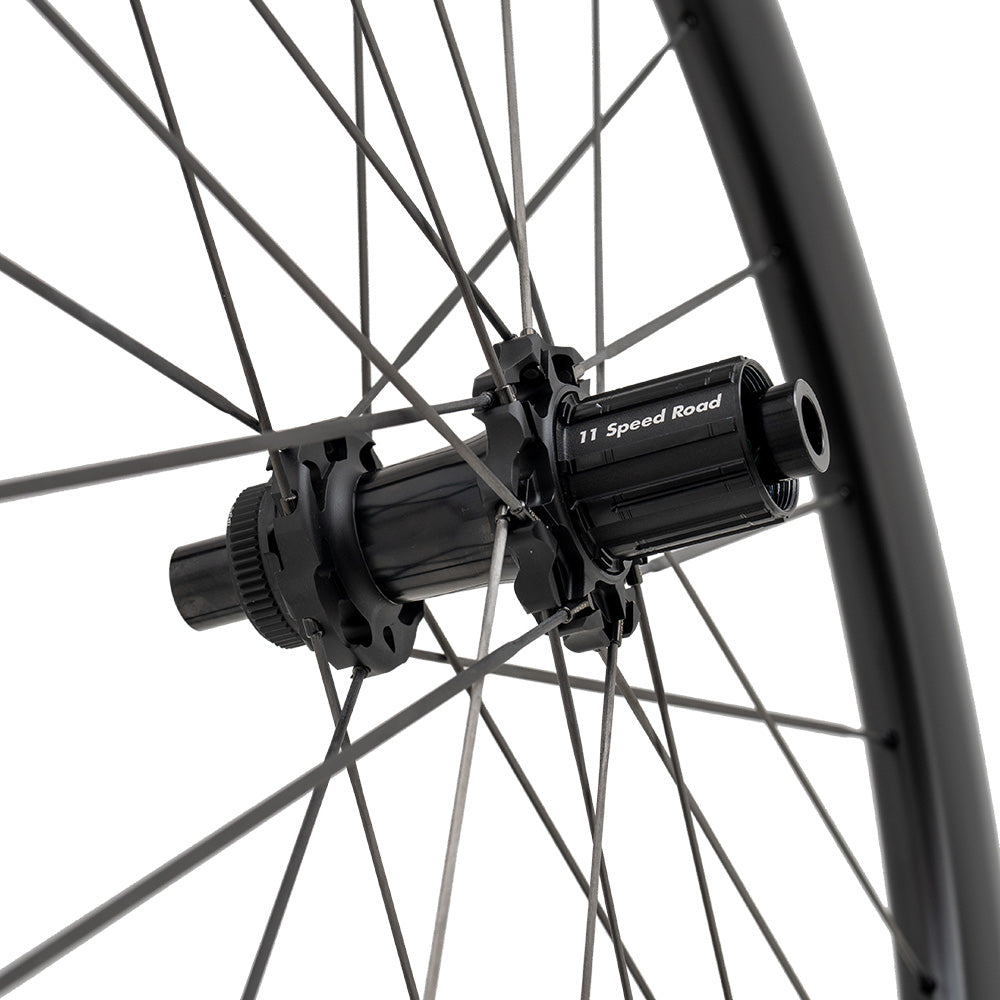

Rear

Sealed Bearing:

4PCS (6802*3 + 6902*1)

Hub Shell Bearings:

2PCS (6802*1 + 6902*1)

Freehub Shell Bearings:

2PCS (6802*2)

Disc Mount:

Centre Lock

Ratchet:

60T Ratchet System

Freehub Body:

HG (Shimano 11sp) / XDR (For SRAM)

Hub Spoke Holes:

24H

Axle Size x Hub O.L.D:

TA12 x 142

Hub P.C.D:

Left 45 / Right 54

Hub F.T.F:

51

Hub Offset:

8.2
