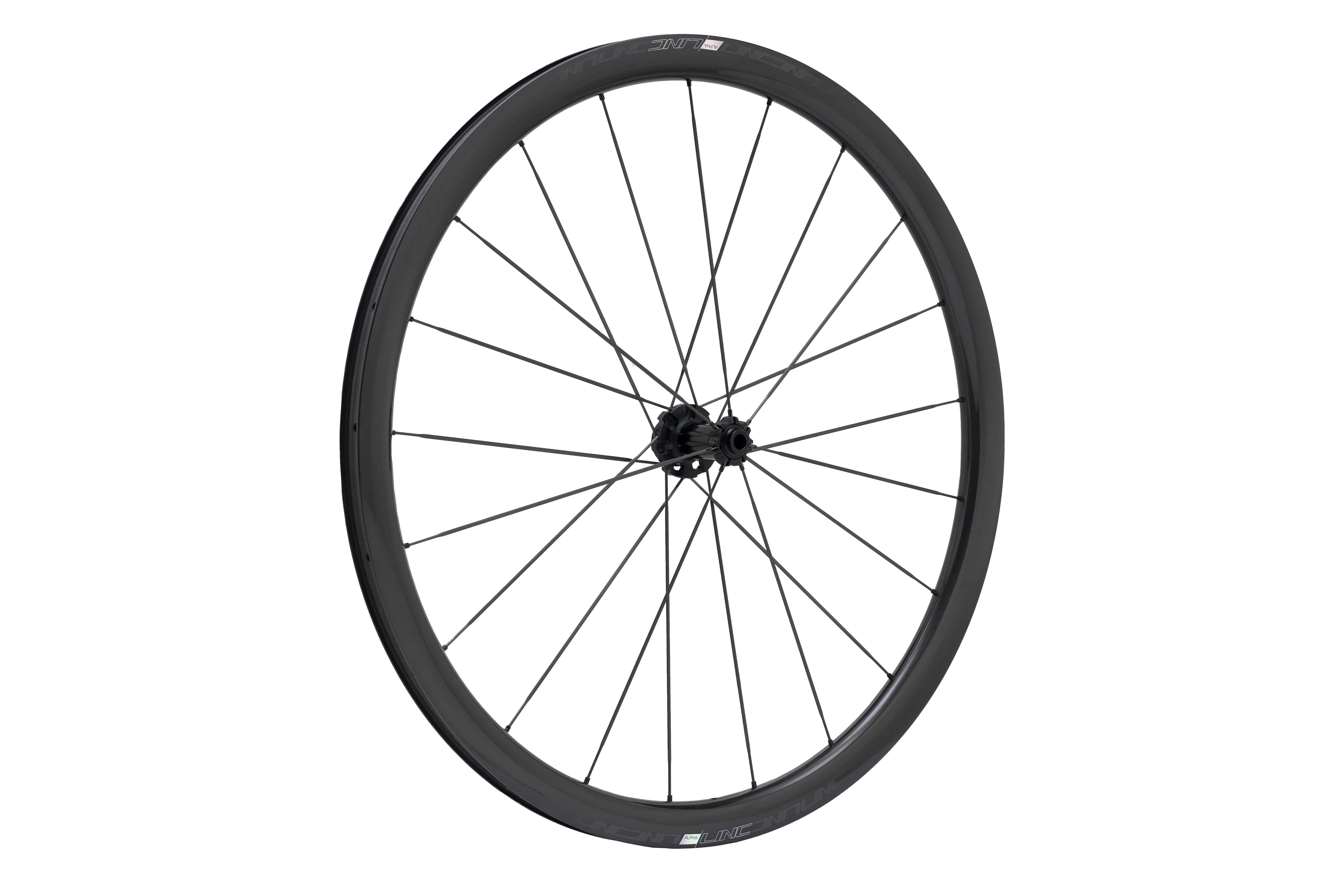

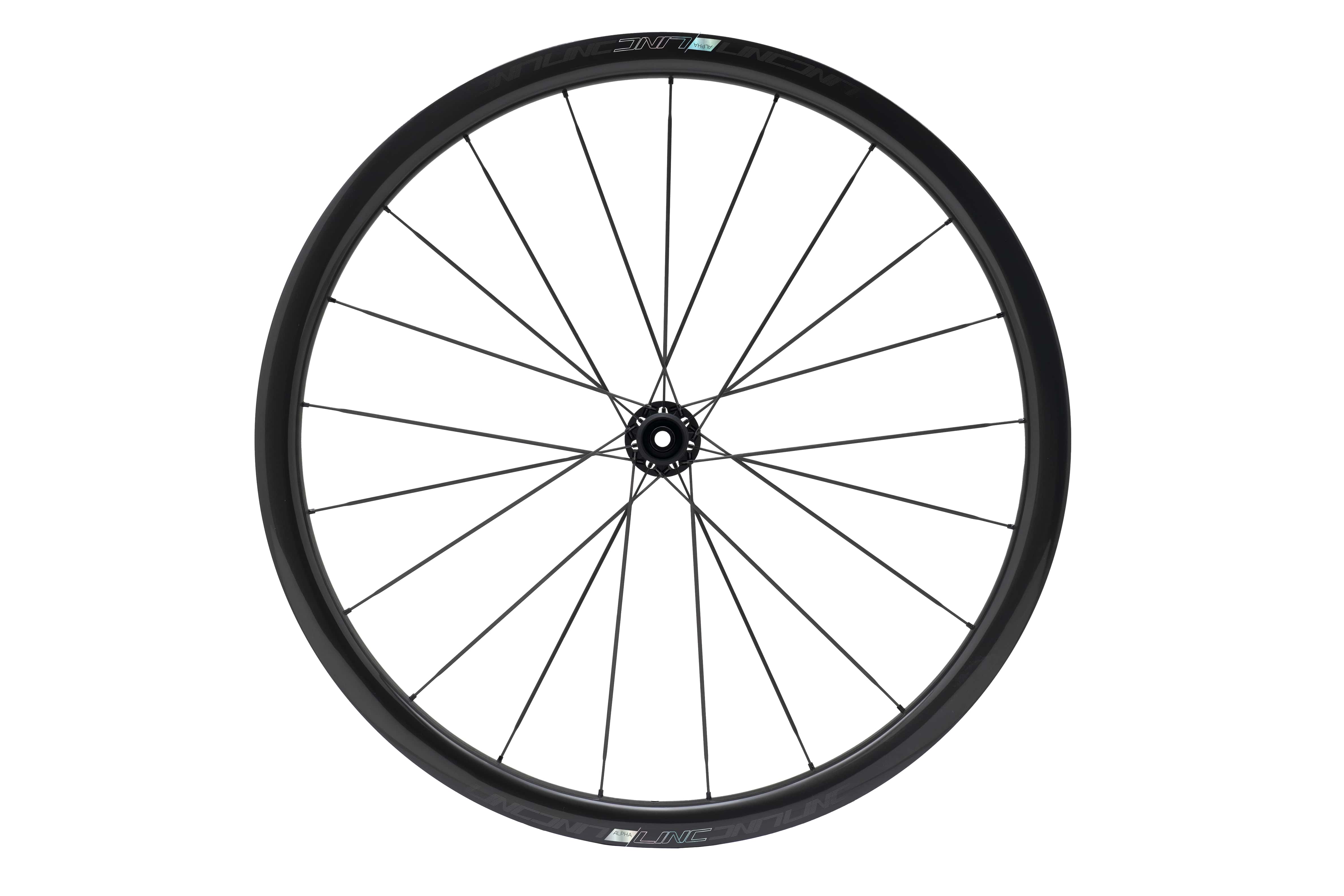

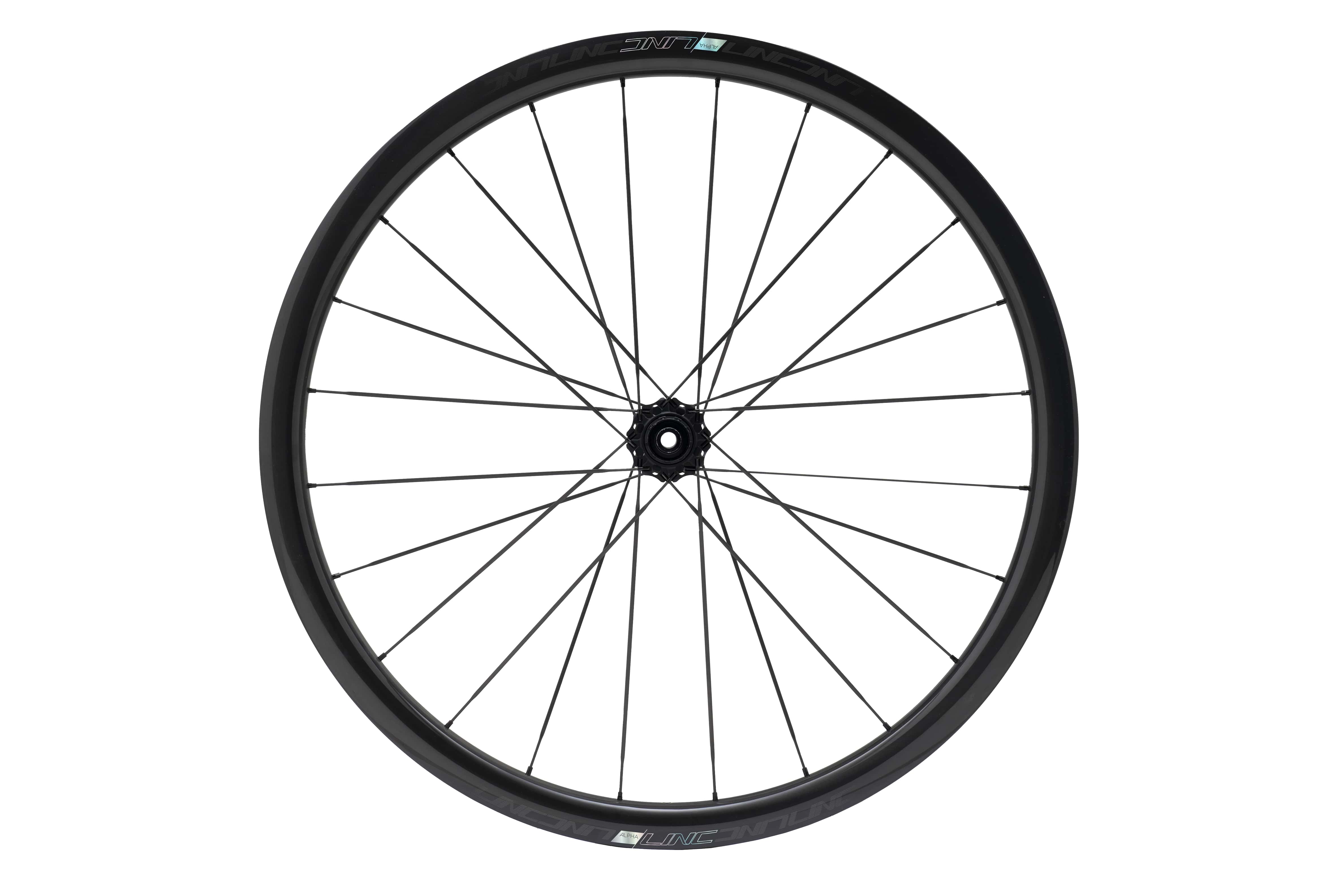

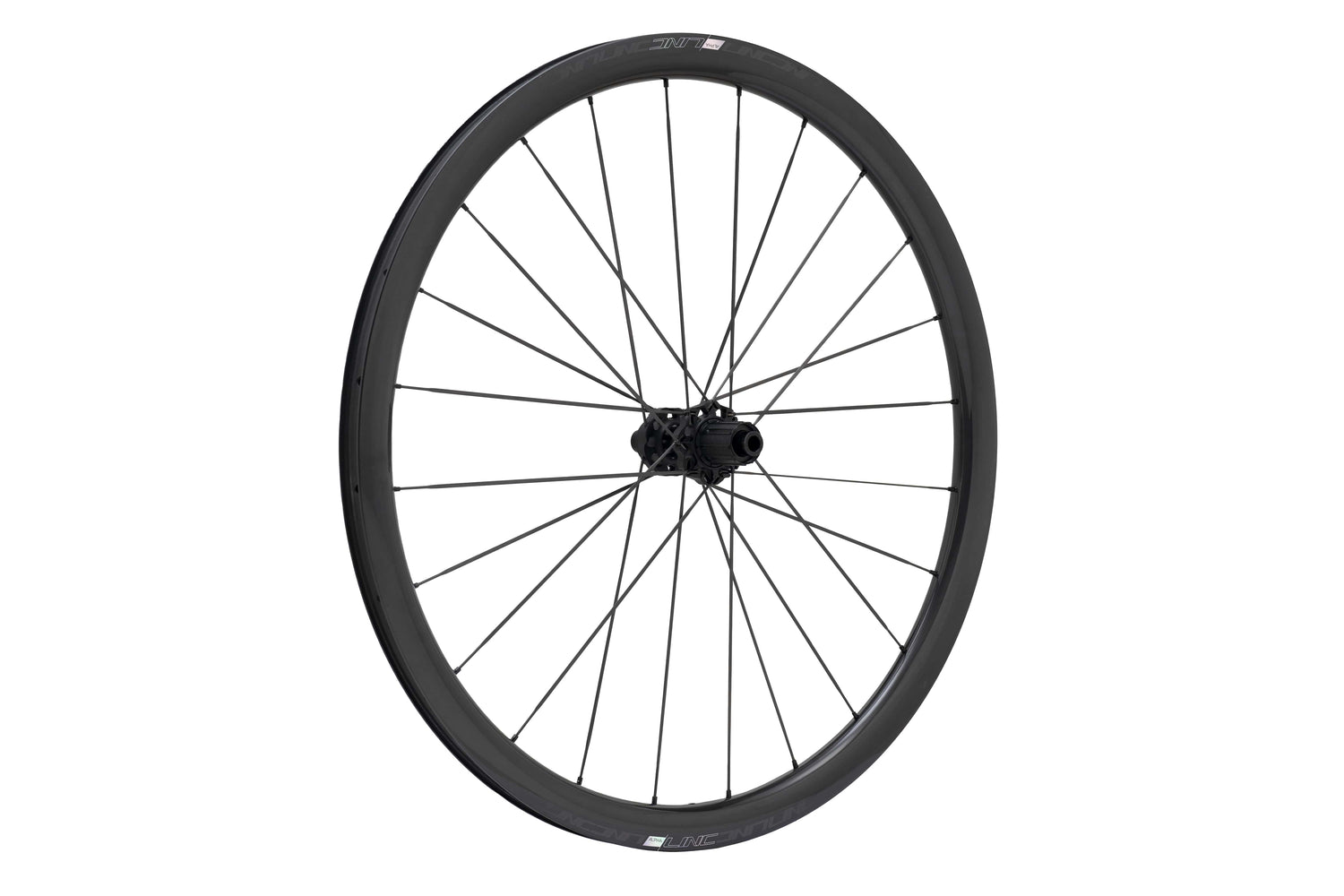

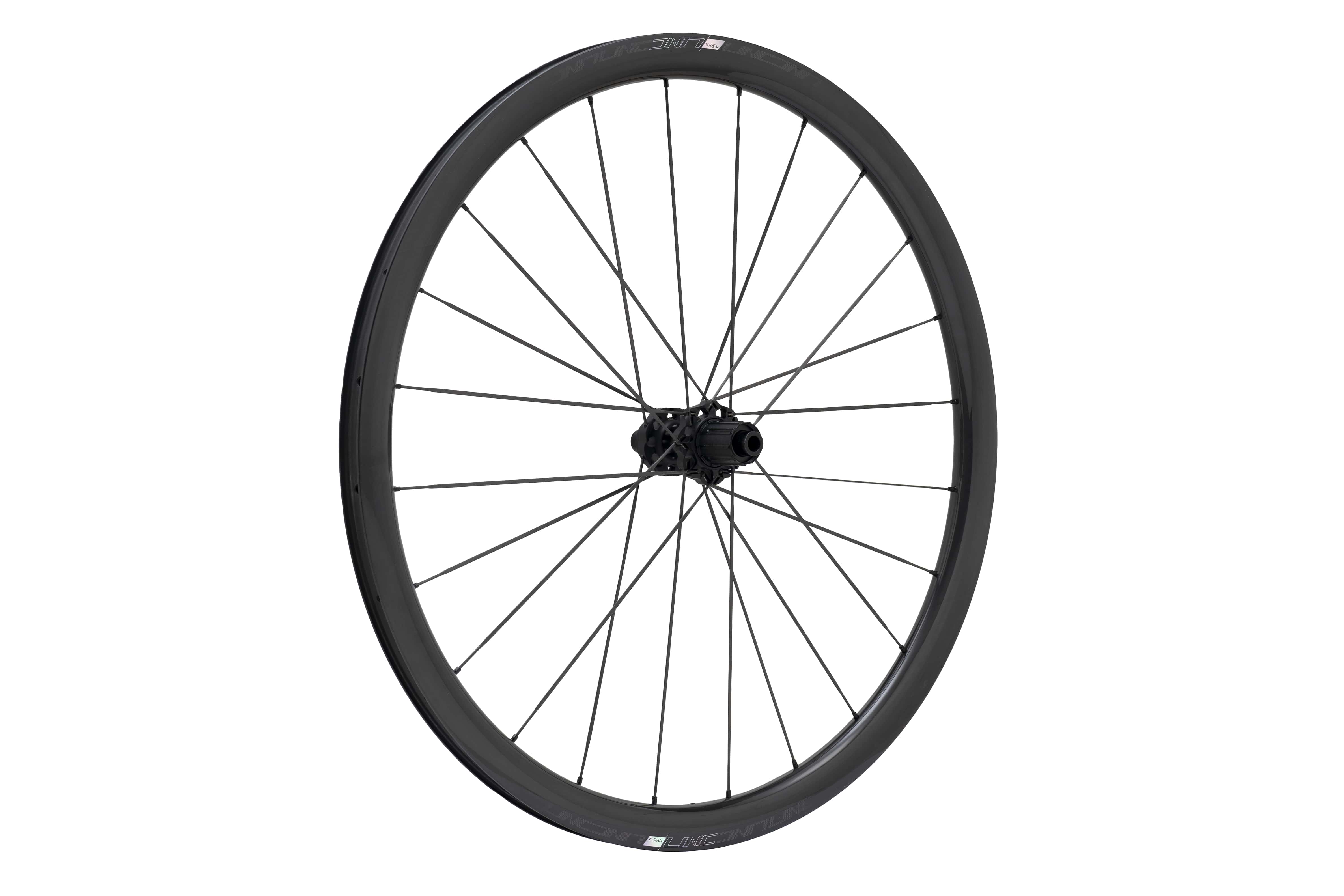

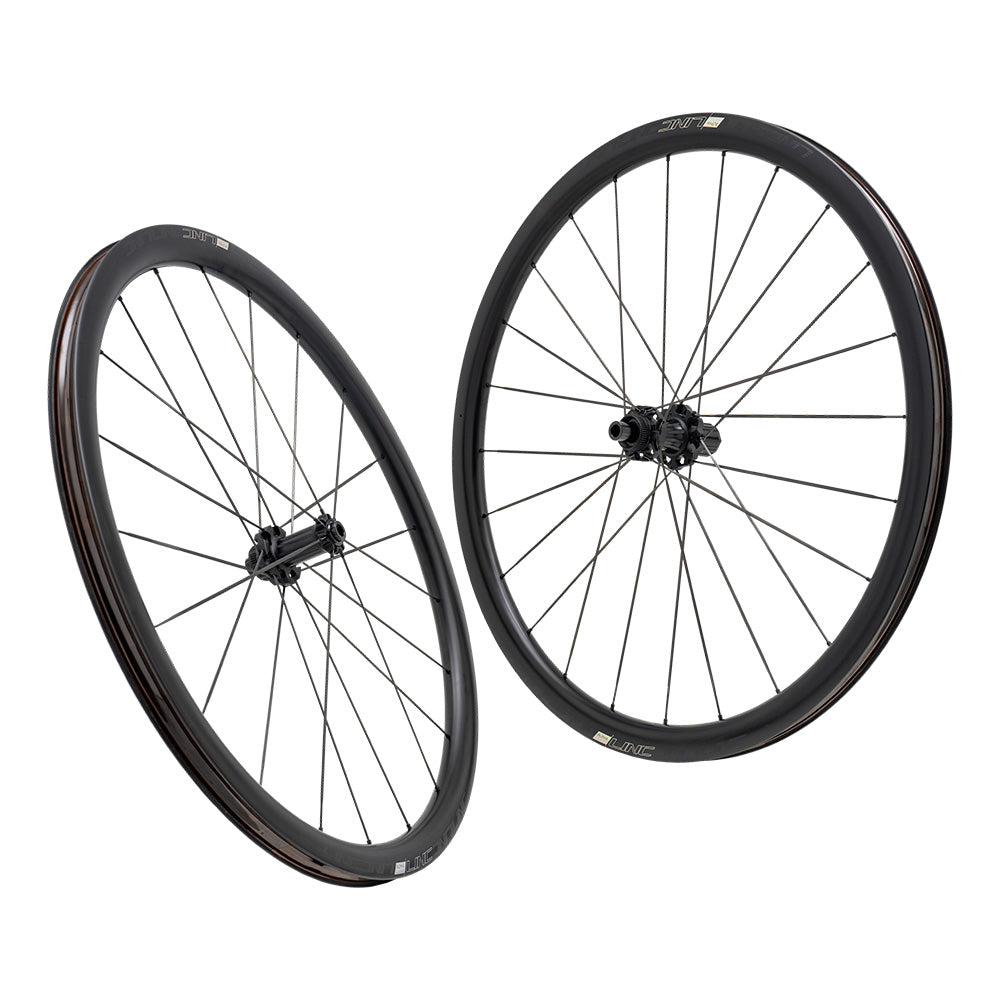

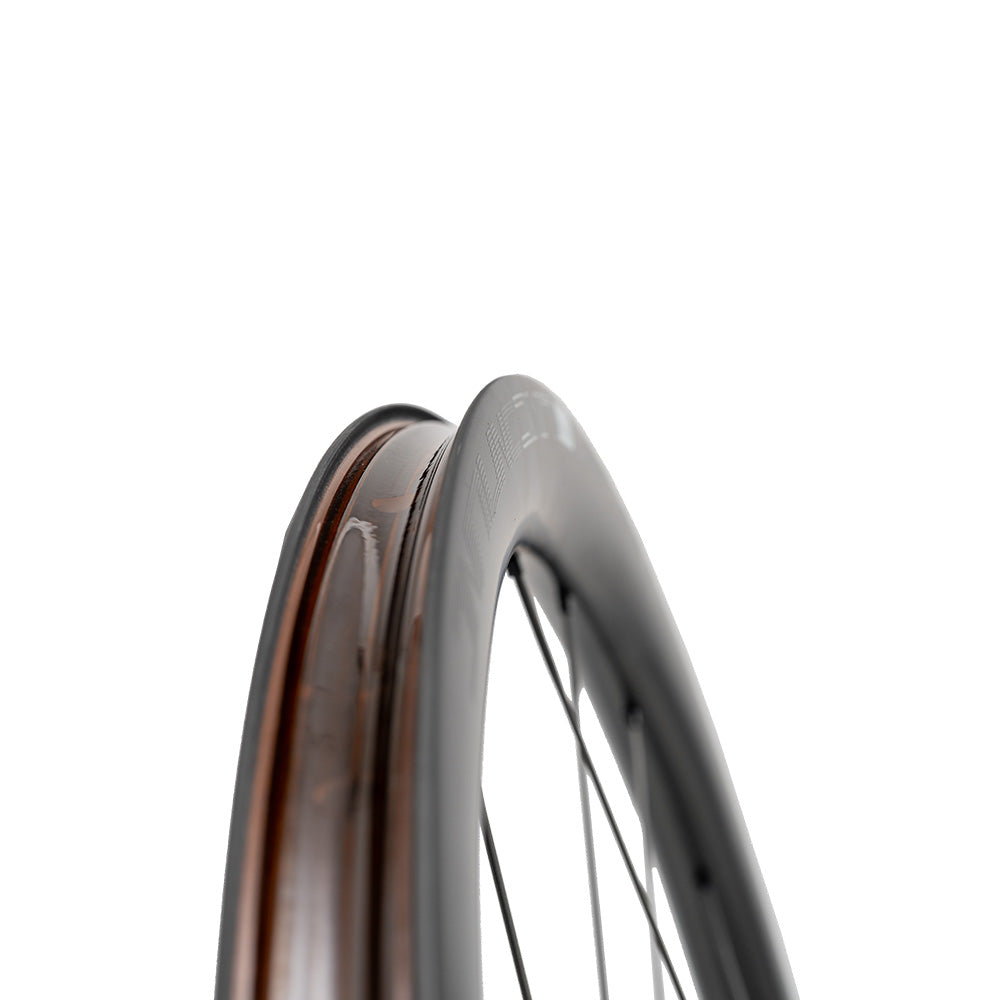

LINC Alpha 35

The Most Ultimate Climbing Wheel.

LINC Alpha 35 marries lightness and handling in a low-profile disc wheel. Our semi–toroidal 35mm deep rim profile is perfectly tuned and tensioned with carbon bladed spokes, which balance lightness and aerodynamics.

Weight
570g (front) / 720g (rear)

You may also like

Features

High-Quality Carbon Fiber Material

Delivers exceptional strength with ultra-lightweight construction, enhancing the efficiency and responsiveness of your bike.

Superior Aerodynamic Carbon Spoke Design

The oval-shaped middle section with a thickness of 1.4mm reduces wind resistance, ensuring maximum speed on every ride.

Optimal Stiffness & Power Transmission

Unique carbon spoke structure provides ideal stiffness for efficient power transfer, making every pedal stroke feel more powerful.

Tubeless-Ready

Compatible with both tubeless setups and traditional inner tubes for versatile performance.

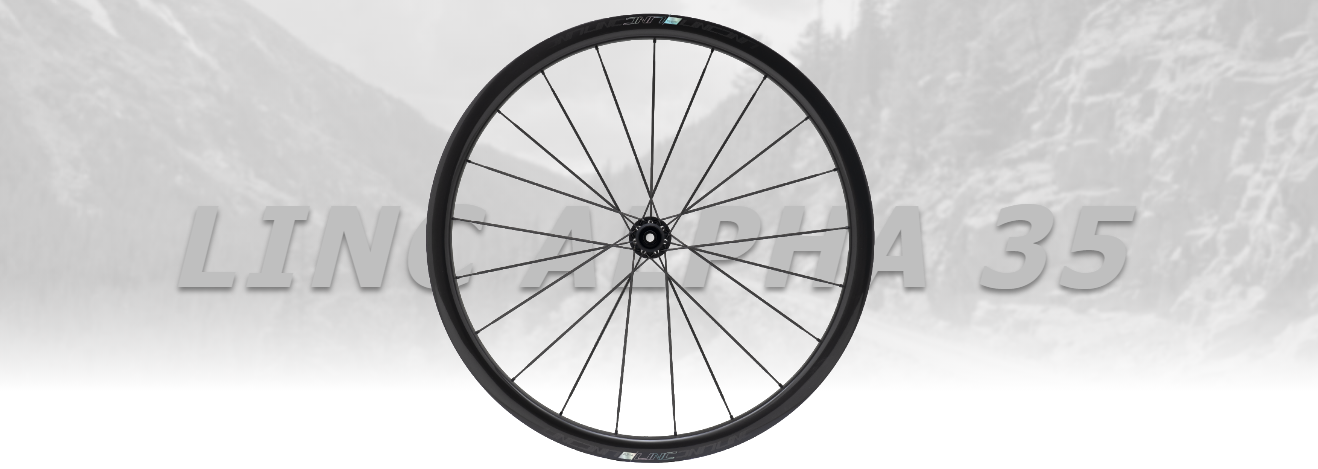

Spec Image

Tyre Type:

2-Way Fit (Clincher and Tubeless)

Tyre Size:

700c

Rim Weight:

570g (f) / 720g (r)

Rim Material:

Carbon

Rim Depth:

Front and Rear 35 mm

Rim Width:

22 MM

Braking System:

Disc Brake

Front Hub:

Alumunium, Oversize Flange

Rear Hub:

Alumunium, Oversize Flange

O.L.D:

110 mm / 142 mm

Front Wheel Spoke:

21 H Straight Pull

Rear Wheel Spoke:

24 H Straight Pull

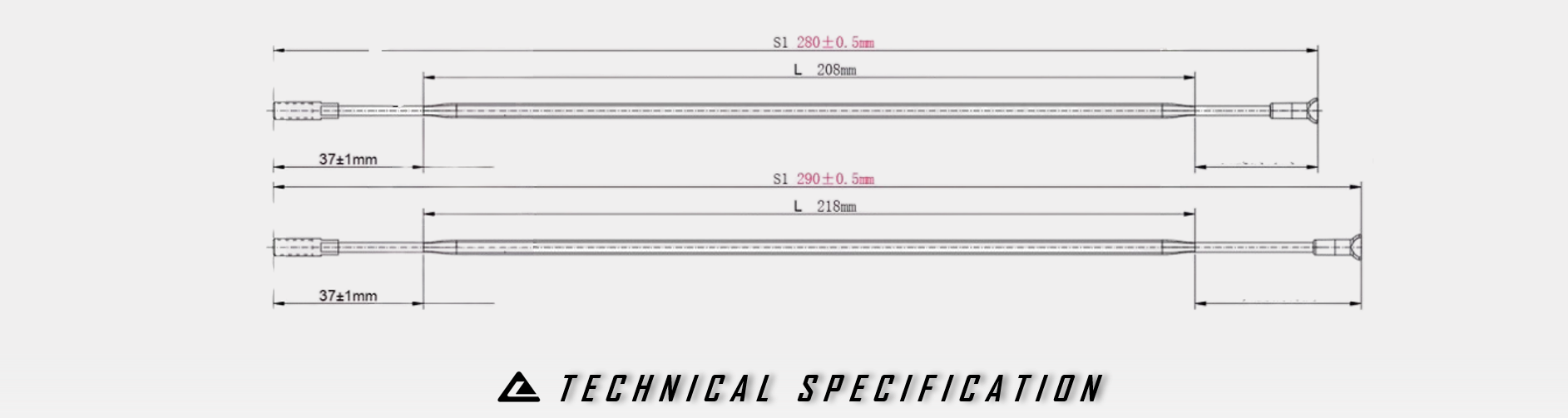

Spec Image

Wheelsize:

700C

LINC Hub:

12 x 110mm / 12 x 142mm

Weight:

2.8g

Spoke Length:

F.DS : 280mm / R.DS : 276.5mm
F.NDS : 281.5mm / R.NDS : 282mm

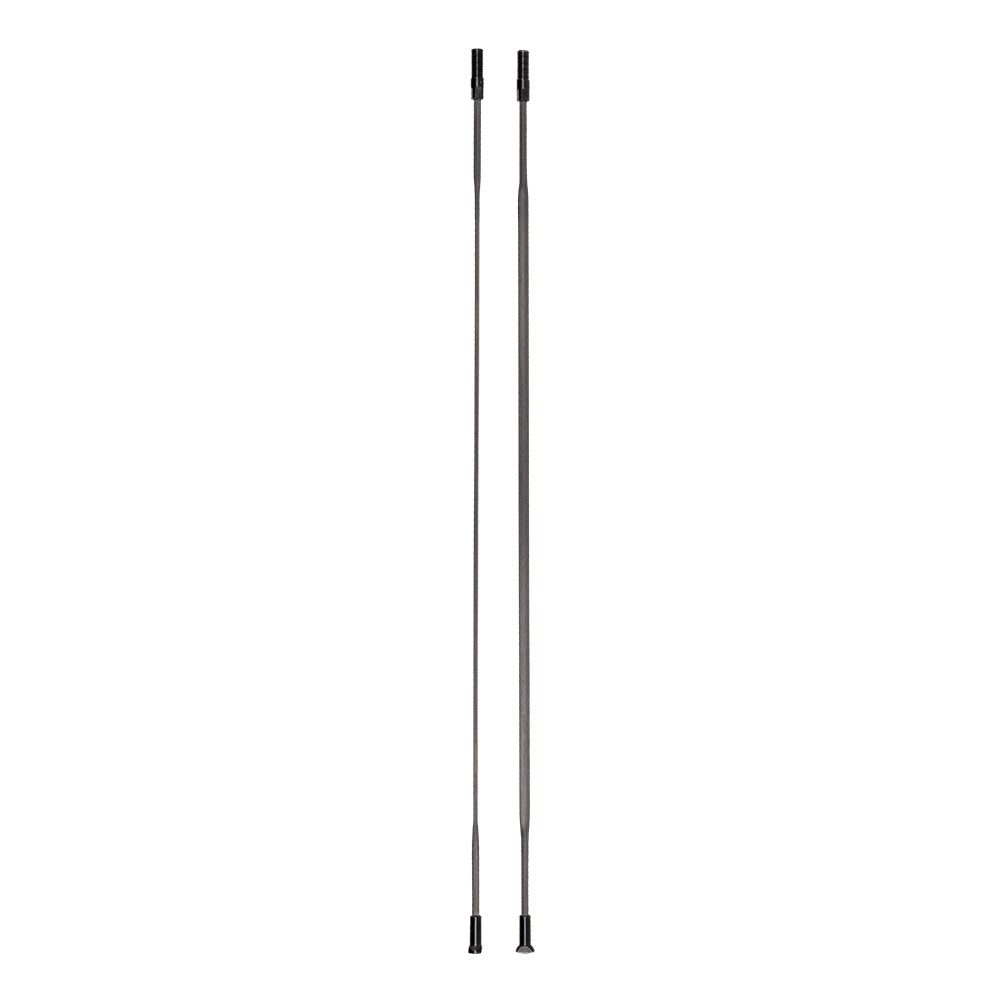

Spoke Material:

VONOA Carbon

Spoke Type:

Aero Spokes

Spoke Count:

F: 21H / R: 24H

Nipple:

8.7mm

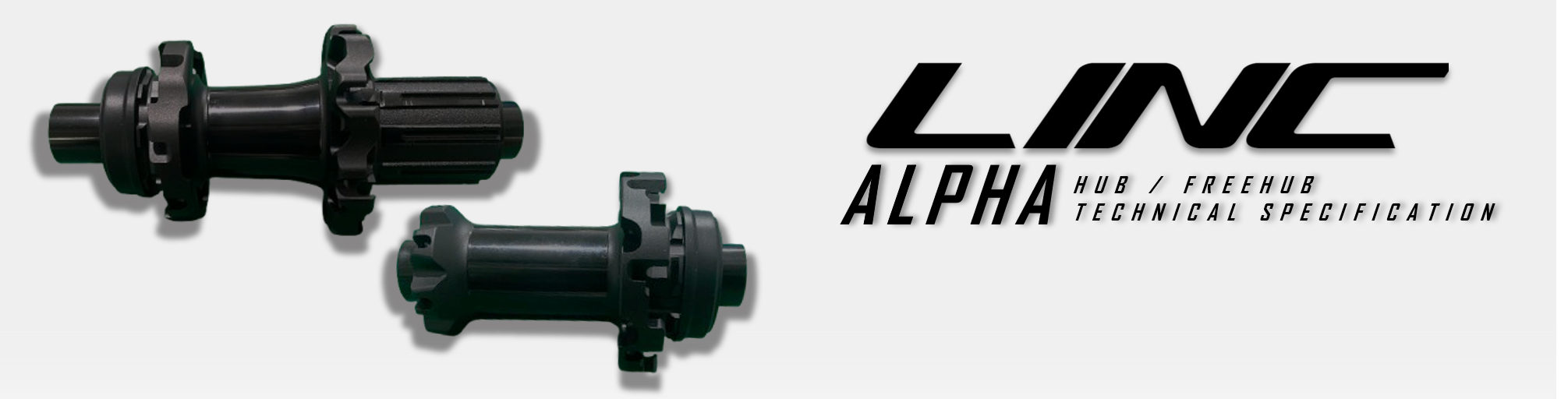

Spec Image

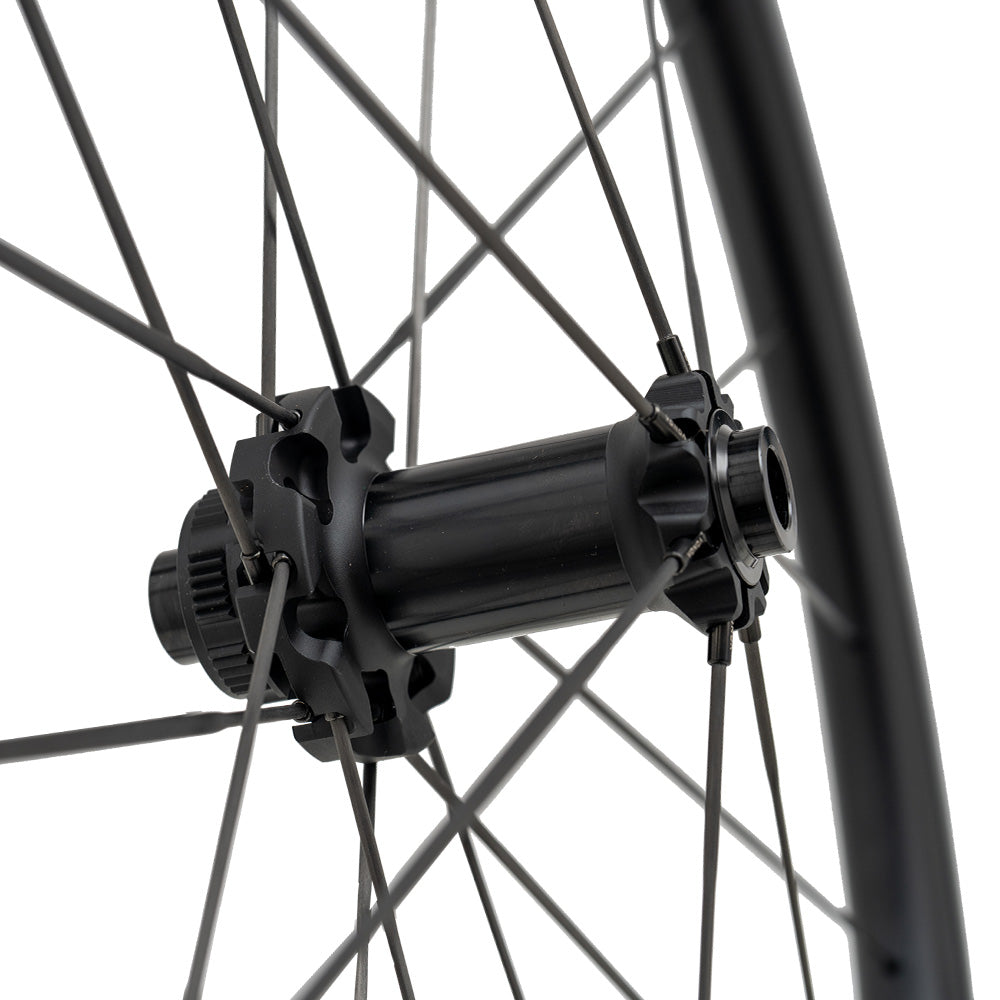

Front

Sealed Bearing:

2PCS (6802*1 + 6902*1)

Hub Shell Bearings:

2PCS (6802*1 + 6902*1)

Freehub Shell Bearings:

-

Disc Mount:

Centre Lock

Ratchet:

-

Freehub Body:

-

Hub Spoke Holes:

21H

Axle Size x Hub O.L.D:

TA12 x 100

Hub P.C.D:

Left 48 / Right 30

Hub F.T.F:

59

Hub Offset:

10

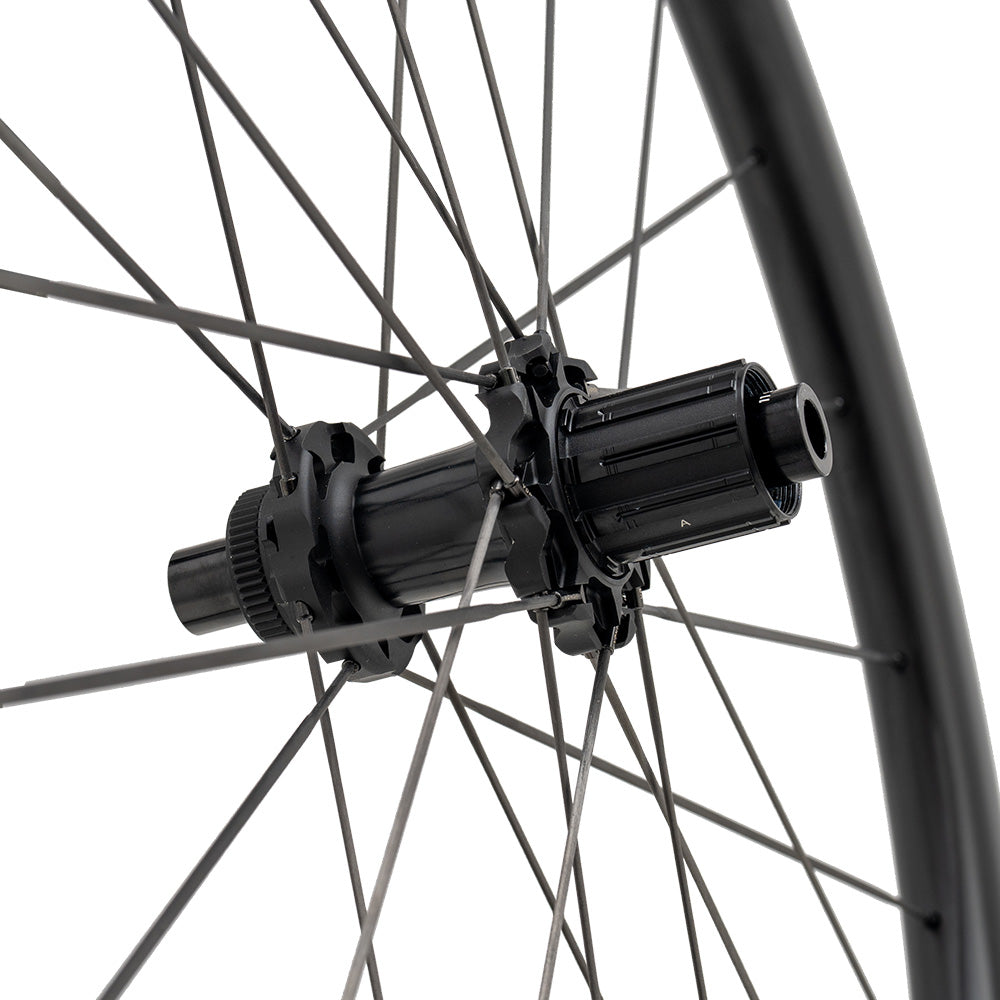

Rear

Sealed Bearing:

4PCS (6802*3 + 6902*1)

Hub Shell Bearings:

2PCS (6802*1 + 6902*1)

Freehub Shell Bearings:

2PCS (6802*2)

Disc Mount:

Centre Lock

Ratchet:

60T Ratchet System

Freehub Body:

HG (Shimano 11sp) / XDR (For SRAM)

Hub Spoke Holes:

24H

Axle Size x Hub O.L.D:

TA12 x 142

Hub P.C.D:

Left 45 / Right 54

Hub F.T.F:

51

Hub Offset:

8.2
